Sunday, July 20, 2014

INSTAL ORACLE 10G DI UBUNTU 10.04

Langkah-Langkah :
  1. Download Oracle 10g Database (10201_database_linux32.zip). Dapat di download disini
  2. Install Ubuntu 10.04
  3. Setup Ubuntu for Oracle 10g
Buka Terminal/Console
  • Backup sources.list:
# sudo cp /etc/apt/sources.list /etc/apt/sources.list_backup
  • Run the following command and comment out the two lines:
# sudo gedit /etc/apt/sources.list
(Copy & Paste tulisan di bawah ini pada source.list)
deb http://kebo.vlsm.org/ubuntu lucid main restricted universe multiverse
deb http://kebo.vlsm.org/ubuntu lucid-updates main restricted universe multiverse
deb http://kebo.vlsm.org/ubuntu lucid-security main restricted universe multiverse
deb http://kebo.vlsm.org/ubuntu lucid-backports main restricted universe multiverse
deb http://kebo.vlsm.org/ubuntu lucid-proposed main restricted universe multiverse
  • Run the following commands:
# sudo apt-get update (Update Linux anda)
(Setelah Selesai Update Ketik Tulisan dibawah ini pada terminal)
# sudo apt-get install gcc libaio1 lesstif2 lesstif2-dev make rpm libc6 libstdc++5
  • Add new groups:
# sudo groupadd oinstall
# sudo groupadd dba
# sudo groupadd nobody
  • Add a new user and change its password:
# sudo useradd -m oracle -g oinstall -G dba,admin -s /bin/bash
# sudo passwd oracle
  • Run the following command and add the lines that follow. Make sure there is a new line at the end:
# sudo gedit /etc/sysctl.conf
(Copy & Paste di baris paling bawah tulisan di bawah ini pada sysctl.conf)
kernel.shmall = 2097152
kernel.shmmax = 2147483648
kernel.shmmni = 4096
kernel.sem = 250 32000 100 128
fs.file-max = 65536
net.ipv4.ip_local_port_range = 1024 65000
  • Refresh sysct.conf:
# sudo /sbin/sysctl -p
  • Run the following command and add the lines that follow before the '# end of file' marker :
# sudo gedit /etc/security/limits.conf
(Copy & Paste di baris paling bawah tulisan di bawah ini pada limits.conf)
soft nproc 2047
hard nproc 16384
soft nofile 1024
hard nofile 65536
  • Build links so Ubuntu looks like Red Hat:
# sudo ln -s /usr/bin/awk /bin/awk
# sudo ln -s /usr/bin/rpm /bin/rpm
# sudo ln -s /lib/libgcc_s.so.1 /lib/libgcc_s.so
# sudo ln -s /usr/bin/basename /bin/basename
  • Make an oracle directory:
# sudo mkdir /u01
  • Let the oracle directory own the install:
# sudo chown -R oracle:oinstall /u01
  • Change permissions of /u01:
# sudo chmod -R 775 /u01
  • Run the following command and add the lines that follow 'unmask 022' (these commands setup the Oracle paths):
# sudo gedit /etc/profile
(Copy & Paste di baris paling bawah tulisan di bawah ini pada source.list)
export ORACLE_BASE=/u01/app/oracle
export ORACLE_HOME=/u01/app/oracle/product/10.2.0/db_1
export ORACLE_SID=orcl10
export PATH=$PATH:$ORACLE_HOME/bin
  • Run the following command and add the line that follow (makes Oracle think its on Red Hat):
# sudo gedit /etc/redhat-release
(Copy & Paste tulisan di bawah ini pada redhat-release)
Red Hat Enterprise Linux AS release 3 (Taroon)
  • after that do this command:
# cd /u01/
  • Let the oracle user own the install file:
(Copy Hasil Download "10201_database_linux32.zip" pada folder u01) Setelah Copy, Ketik Tulisan di Bawah ini Pada Terminal:
# sudo chown oracle:oinstall 10201_database_linux32.zip
  • Change the permissions of kthe install file
# sudo chmod 775 10201_database_linux32.zip
  • Move the file from your directory to the new oracle directory
# sudo mv 10201_database_linux32.zip /home/oracle
# cd /home/oracle/
# sudo unzip 10201_database_linux32.zip
  • Logout User Anda, Lalu Login di User Oracle
  • Selanjutnya buka terminal lalu ketik:
# cd /home/oracle/database/ (enter)
# ./runInstaller -ignoreSysPreReqs

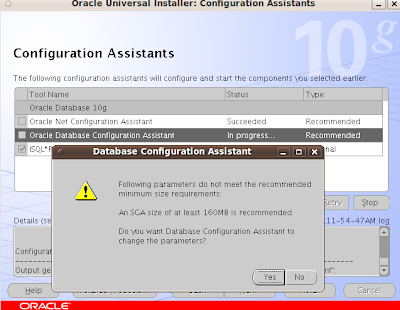

  • Terakhir ikuti Langkah2 instalasi Berikut ini :









































Selanjutnya Install SQL Developer yang dapat di download disini :
http://www.oracle.com/technetwork/developer-tools/sql-developer/downloads/sqldev30downloads-1525485.html

Cara Run :
  1. Via Browser : http://localhost:1158/em/console/logon/logon
  2. Via GUI : Applications-Programming-SqlDeveloper
Untuk run cara kedua harus membutuhkan JDK terlebih dahulu. JDK dapat di download disini :
http://www.oracle.com/technetwork/java/javase/downloads/jdk-6u25-download-346242.html

Kemudian setting Path JDKnya :
  • sudo gedit /opt/sqldeveloper/sqldeveloper/bin/sqldeveloper.conf
  • rubah SetJavaHome ../../jdk menjadi SetJavaHome/home/oracle/Documents/jdk1.6.0_25/
  • lalu save.
(Untuk Direktori /home/oracle/Documents/jdk1.6.0_25/ sesuaikan dengan letak folder JDK anda.
